Technische Spezifikation des Traktoren Case IH JX55/JX65/JX75/JX85/JX95:
Anzeige
Modell | Case IH JX55 | Case IH JX65 | Case IH JX75 | Case IH JX85 | Case IH JX95 |
Jahre der Produktion | – | – | – | – | – |
Motormodell / -typ | 8035.06 | 8035.05 | 8045.06 | 8045.05 | 8045.25 |
Anzahl der Zylinder / Turboaufladung | 3 | 3 | 4 | 4 | 4T |
Hubraum (cm3) | 2710 | 2930 | 3613 | 3908 | 3908 |
Anzahl der Zylinder / Turboaufladung | 100×115 | 100×115 | 100×115 | 104×115 | 104×115 |
Maximale Motorleistung (PS) / U / min | 58/2500 | 64/2500 | 74/2500 | 85/2500 | 98/2500 |
Drehmoment (Nm) / U / min | 185/1500 | 198/1500 | 250/1500 | 268/1500 | 340/1500 |
Anzahl der Gänge (vorne + hinten) | 12+12 | 12+12 | 12+12 | 12+12 | 12+12 |
Anzahl der synchronisierten Gänge (vorne + hinten) | 12+12 | 12+12 | 12+12 | 12+12 | 12+12 |
Anzeige
StufenlosArt der Antriebsübertragung | – | – | – | – | – |
Art der Revers | mech | mech | mech | mech | mech |
Fahrgeschwindigkeit (km/h) | 2,2-36,6 | 2,2-36,6 | 2,2-36,6 | 2,2-36,6 | 2,2-36,6 |
Maximale Fahrgeschwindigkeit (km/h) | 30/40 | 30/40 | 30/40 | 30/40 | 30/40 |
Hydraulikpumpenkapazität (L/min) | 44,5 | 44,5 | 44,5 | 44,5 | 44,5 |
Hubwerksregelung | mech | mech | mech | mech | mech |
Max Hubkraft (kg) | 3565 | 3565 | 3565 | 3565 | 3565 |
Zapfwellendrehzahl (U / min) | 540/750 | 540/750 | 540/750 | 540/750 | 540/750 |
Scheibenbremsenart (trocken / nass) | – | – | – | – | – |
Art der Steuerung des Bremssystems | hydr | hydr | hydr | hydr | hydr |
Wendekreis 2WD (m) | – | – | – | – | – |
Wendekreis 4WD (m) | 8,4 | 8,4 | 8,4 | 8,4 | 8,4 |
Anzeige
Bereifung vorne 2WD | – | – | – | – | – |
Bereifung vorne 4WD | 9,5R24 | 11,2R24 | 11,2R24 | 13,6R24 | 13,6R24 |
Bereifung hinten 2WD | – | – | – | – | – |
Bereifung hinten 4WD | 14,9R30 | 16,9R30 | 16,9R30 | 16,9R34 | 16,9R34 |
2WD Gesamtgewicht (kg) | – | – | – | – | – |
4WD Gesamtgewicht (kg) | 3370 | 3400 | 3600 | 3600 | 3770 |
Gesamthöhe mit Kabine (cm) | 255 | 255 | 255 | 255 | 255 |
Gesamtlänge (cm) | 393 | 393 | 411 | 411 | 411 |
Gesamtbreite (cm) | 211 | 211 | 233 | 233 | 233 |
Kraftstofftankinhalt (l) | 92 | 92 | 92 | 92 | 92 |
Kabinen Lautstärke (dB) | 84 | 84 | 84 | 84 | 84 |
Anzeige
Füge eine Meinung zum Case IH JX55/JX65/JX75/JX85/JX95:

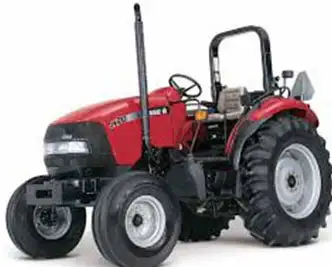

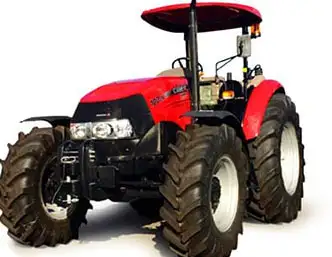

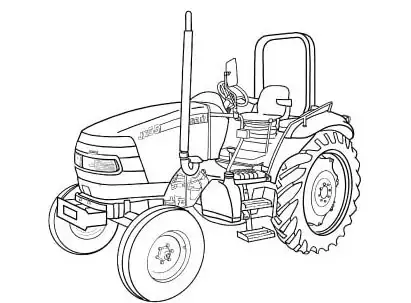

Case IH JX55/JX65/JX75/JX85/JX95 GALERIE:
